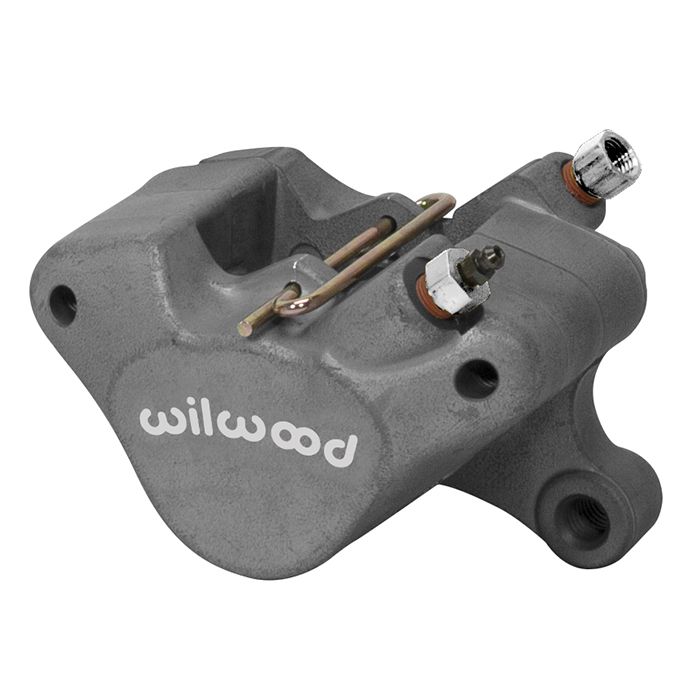

Wilwood 120-3842 Dynalite Single IIIA Universal Lug Mount Caliper 2 Pistons
Wilwood 120-3842 Dynalite Single IIIA Universal Lug Mount Caliper 2 Pistons
Manufacturer
Wilwood
Wilwood
SKU
WIL-120-3842
Price:
€119.74
The lowest price of the last 30 days before the discount:
€119.74
On demand
Wilwood 120-3842 Dynalite Single IIIA Universal Lug Mount Caliper 2 Pistons
Dynalite Single IIIA
Wilwood’s Dynalite Single IIIA utilizes a cost effective permanent mold casting with advanced design and manufacturing techniques which results in the most rigid, lightweight and attractive caliper in the evolution of the Dynalite Single Series. Starting at 1.8 pounds, the Billet Dynalite Single is perfect for compact high performance braking as required in many OEM applications like snowmobile & motorcycle.
Pistons
Piston Count
2
Piston Area (in²)
2.40
Piston Type
Stainless
Dust Boot
No
Rotor Dimensions
Rotor Width (in)
0.25
Rotor Diameter(in)
13.00
Pad Dimensions
Pad Area (in²)
3
Pad Volume (in³)
1.1
Duty Rating & Material
Material
Cast Aluminium
Weight(Lbs)
2.0
Colors & Finish
Color
Anodize
Finish
Type III Anodize
Mounting
Mount Center(in)
3.75
Mount Position
Mount Side
Universal
Mount Type
Lug
Specifications
Rotor Compatibility
Rotor Width (in)
0.25
Maximum Rotor Width (in)
0.25
Minimum Rotor Width (in)
0.18
Maximum Rotor Diameter(in)
13.00
Minimum Rotor Diameter(in)
6.00
Brake Pad Specifications
Brake Pad Type 1
6812
Brake Pad Type 2
7012
Brake Pad Type 3
N-A
Total Pad Area (in²)
3
Total Pad Volume (in³)
1.1
Mount
Piston Specifications
Piston 1 Bore (in)
1.75
Piston 2 Bore (in)
Piston 3 Bore (in)
Total Piston Area (in²)
2.40

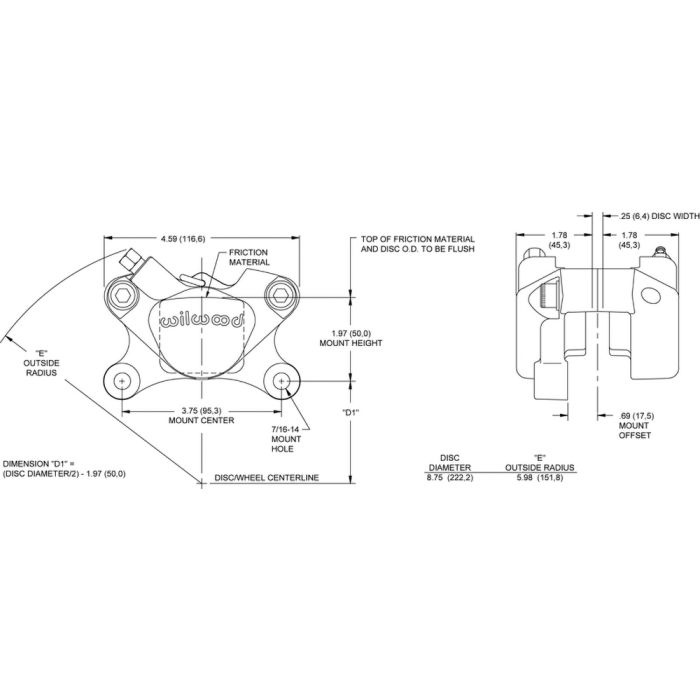

Mounting Specifications
Mount Type
Lug
Mount Side
Universal
Mount Center(in)
3.75
Mount Hole Size(in)
0.39
Mount Height(in)
1.92
Inlet Thread Size
3/8-24
Dynalite Single IIIA
Wilwood’s Dynalite Single IIIA utilizes a cost effective permanent mold casting with advanced design and manufacturing techniques which results in the most rigid, lightweight and attractive caliper in the evolution of the Dynalite Single Series. Starting at 1.8 pounds, the Billet Dynalite Single is perfect for compact high performance braking as required in many OEM applications like snowmobile & motorcycle.
Pistons
| Piston Count | 2 |
| Piston Area (in²) | 2.40 |
| Piston Type | Stainless |
| Dust Boot | No |
Rotor Dimensions
| Rotor Width (in) | 0.25 |
| Rotor Diameter(in) | 13.00 |
Pad Dimensions
| Pad Area (in²) | 3 |
| Pad Volume (in³) | 1.1 |
Duty Rating & Material
| Material | Cast Aluminium |
| Weight(Lbs) | 2.0 |
Colors & Finish
| Color | Anodize |
| Finish | Type III Anodize |
Mounting
| Mount Center(in) | 3.75 |
| Mount Position | |
| Mount Side | Universal |
| Mount Type | Lug |
Specifications
Rotor Compatibility
| Rotor Width (in) | 0.25 |
| Maximum Rotor Width (in) | 0.25 |
| Minimum Rotor Width (in) | 0.18 |
| Maximum Rotor Diameter(in) | 13.00 |
| Minimum Rotor Diameter(in) | 6.00 |
Brake Pad Specifications
| Brake Pad Type 1 | 6812 |
| Brake Pad Type 2 | 7012 |
| Brake Pad Type 3 | N-A |
| Total Pad Area (in²) | 3 |
| Total Pad Volume (in³) | 1.1 |
| Mount |
Piston Specifications
| Piston 1 Bore (in) | 1.75 |
| Piston 2 Bore (in) | |
| Piston 3 Bore (in) | |
| Total Piston Area (in²) | 2.40 |
Mounting Specifications
| Mount Type | Lug |
| Mount Side | Universal |
| Mount Center(in) | 3.75 |
| Mount Hole Size(in) | 0.39 |
| Mount Height(in) | 1.92 |
| Inlet Thread Size | 3/8-24 |
More Information
Manufacturer
Wilwood
Series
Dynalite Single Floater
| Manufacturer |
Wilwood
|
|---|---|
| Series | Dynalite Single Floater |
