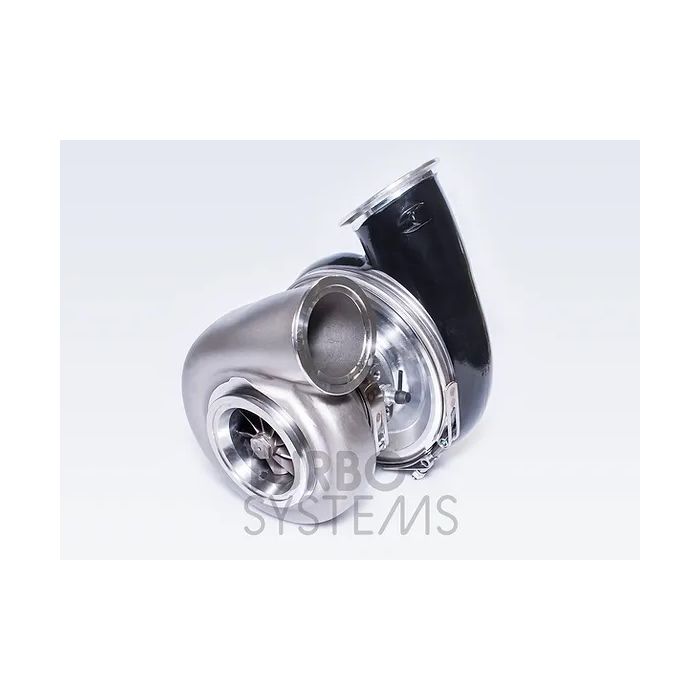

Turbocharger TurboSystems HTX5574B2

HTX5574B2 specifications

• Power range:850 - 1100 HP;

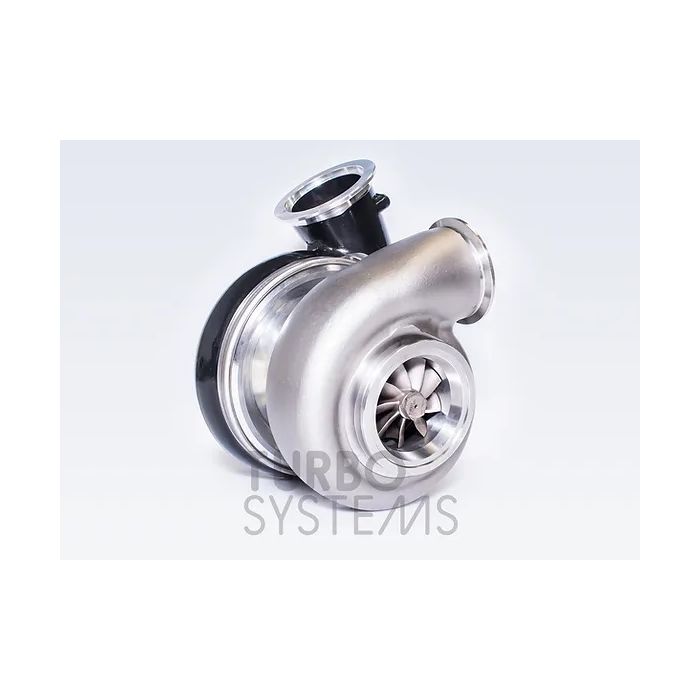

Compressor side:

• Compressor wheel:10+0 blades reinforced billet aluminium;
• Inducer:74mm, Exducer: 91mm;
• Intake: 129mm (5");
• Air outlet:102mm (4");

Core:

• Cooling:Water cooled bearing housing with 2 M16x1.5 ports;
• Bearings:Dual ceramic ball bearings;

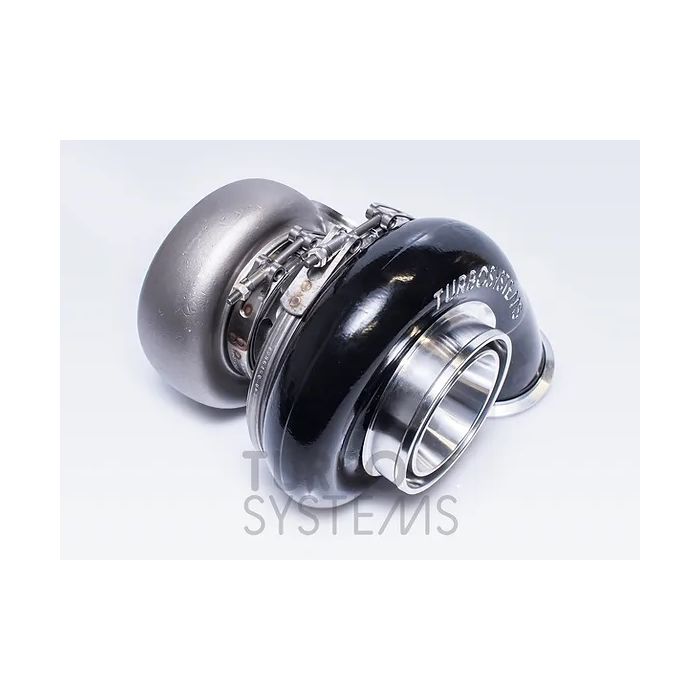

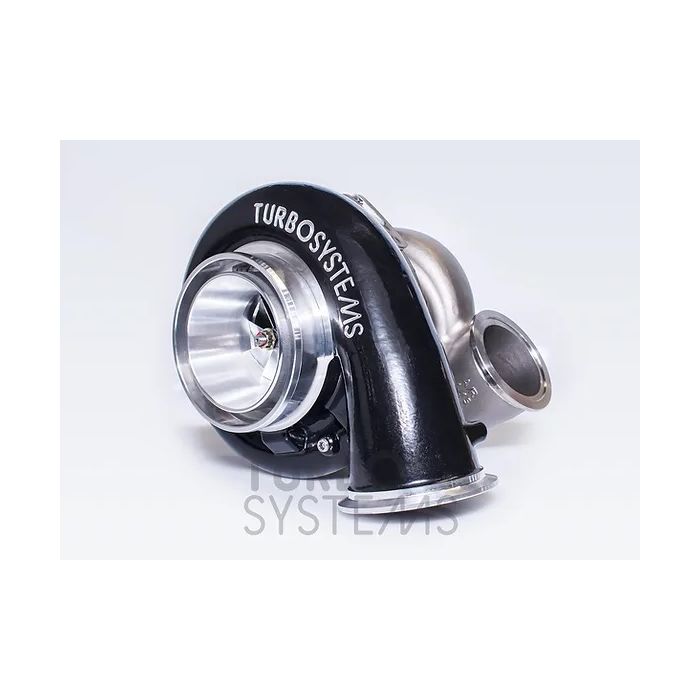

Turbine side:

• Housing:single scroll,  AR: 1.15;
• Turbine wheel:9 blades;
• Inducer:82mm;
• Exducer:75mm;
• Flange: 3" V-band single scroll;
• Exhaust connection:4" V-band clamp;

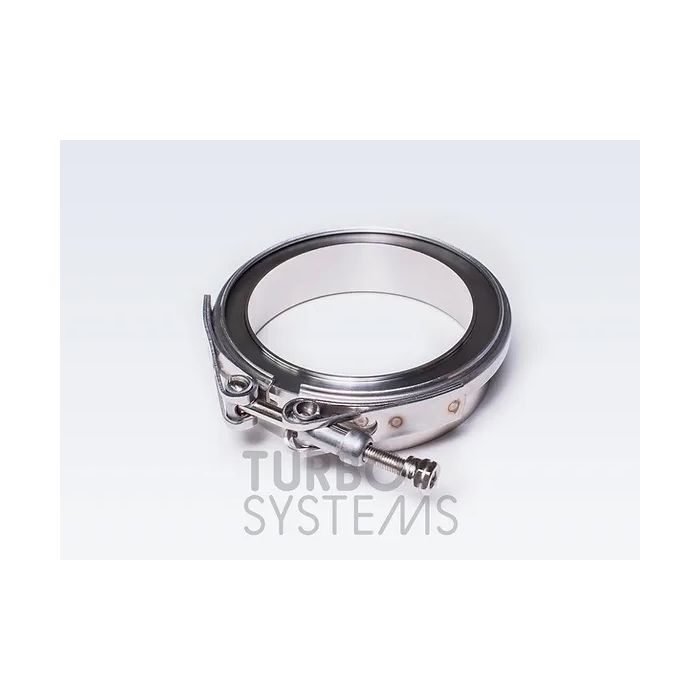

Included V-Band
