BMW E9x Display - Your Cockpit of the Future

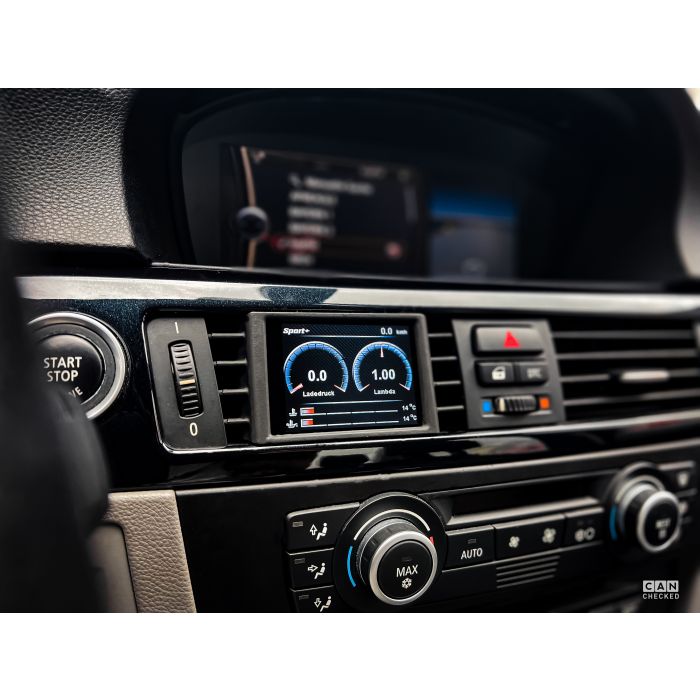

We are proud to introduce our state-of-the-art display for BMW E9x models. This innovative display provides you access to all relevant vehicle data. Yes, we mean all the essential information. Our display reads these data directly through the Can-Bus protocol and presents them on our reliable MFD28 display. The BMW E9x Display is designed to seamlessly fit into your vehicle's cockpit and features a custom-made bezel that perfectly blends with the original design.

The specially tailored Can-Bus protocol has been developed to ensure the fastest query speed possible.

The Highlights:

• Perfect integration into the cockpit design of your BMW E9x
• Support for up to 128 sensors
• 10 customizable display modes thanks to our DSS - Display Setup Software
• Pre-installed display modes for a quick start
• Easy plug-and-play installation with our cable set - simply connect and get started
• 4 additional analog inputs for monitoring exhaust temperature, oil pressure, and more
• Integrated option for connecting an ethanol sensor
• Optimal readability with optional glare protection
• Diagnosis-friendly sensor queries at eye level
• Data logging - continuous or on-demand
• Switch pages with the original cruise control switch

Additional Features:

• Performance Meter: Measure your acceleration times with our performance widget - 0-100, 100-200, 0-200.
• Data Logging: Log all data on the internal SD card - whether on request (start with a fingertip) or continuously. All data from your last trip is saved.
• Customizable Alerts: Enable and customize pre-installed alerts, such as exceeding an exhaust temperature of 900 degrees.
• 4 Additional Analog Inputs: Connect additional sensors such as temperature or pressure sensors to use advanced monitoring functions, including exhaust temperature or exhaust backpressure. An ethanol sensor can be connected to one of the digital inputs.
• Error Reading/Clearing: Read and clear error messages from the engine control unit clearly and distinctly.
• Personalization: Customize the start screen or choose from various widgets to tailor the display to your preferences.
• Seamless Vehicle Integration: Our display is compatible with all BMW E9x models. We are also working on a version for right-hand drive (RHD) vehicles.

Access to All Vehicle Data: We provide a pre-configured TRI file for your display by default. It lists all queryable sensors, including:

Temperatures: Engine coolant temperature, intake air temperature, exhaust gas temperature, transmission temperature.
Pressures: Boost pressure, ambient pressure, oil pressure.
Lambda/Fuel Mixture: Lambda target/actual value, short-term lambda adjustment, long-term lambda adjustment, MAF (mass airflow sensor), engine load, torque.
Driver Dynamics: Brake pressure, vehicle speed, throttle angle/gas pedal position.
Other: RPM, total ignition angle, gear, battery voltage, ignition angle correction per cylinder.

Analog Inputs: You can add additional sensors such as oil temperature, fuel pressure, oil pressure, exhaust gas temperature, and more, as well as an ethanol sensor for flex-fuel applications.

Please note that not every engine provides all of these data.

Compatibility with BMW E9x Models:

The display frame is suitable for all BMW E90 models, including E91, E92, E93. A version for right-hand drive (RHD) is also available.

Package Contents:

Each delivery includes:

• Integrated MFD28 Gen2 data display in the dashboard
• Vehicle-specific connection cable
• Quick start guide
• USB data cable
• SD card (pre-installed in the display)
• SD card adapter
• Display protection film (to prevent reflections)

Connection and Expansion:

You can connect various sensors via the four analog inputs - both linear 0-5V and NTC sensors are supported.

Our in-house CANchecked Dsiplay sensors are already integrated into the TRI/TRX files and only need to be connected:

• AIN1: Temperature sensor
• AIN2: Type K exhaust gas temperature probe
• AIN3: Pressure sensor 0-10 Bar
• AIN4: Boost pressure sensor 0-5.5 Bar absolute

In addition to analog sensors, you can also connect our external flash module with 8 LEDs directly. It can blink in different colors to indicate RPM limits, and the colors can be conveniently configured through the display.

The ethanol sensor is connected directly to the display. A pull-up resistor (10K) between 5V and signal is required. Afterward, you can read and log the ethanol content and temperature directly on the display.

Advanced Features:

With the math channels, you can link sensor data together. User tables enable the creation of additional sensors with 2D or 3D maps.

Optional Accessories:

• CC24000 SLM08 - External flash module
• CC22100 CBD08 - Eight-channel CAN distributor
• CC22902 NTC01 - Temperature sensor for liquids 1/8" NPT
• CC22903 TCC01 - Type K converter 0-1250°C
• CC22901 FLP01 - Pressure sensor 0-10 Bar (145psi) M10x1
• CC22900 BST01 - Pressure sensor 0-5.5 Bar absolute (80psi)

Installation Guide:

We provide an illustrated installation guide to ensure a smooth installation process.

Discover the future of your BMW E9x's cockpit with our advanced display. If you have any questions or need further information, please feel free to contact us.
