Wilwood 340-12411 Pedal Assembly Floor Mount Throttle Pedal & Link
![Wilwood](https://fmic.eu/media/brand/wilwood.png)
In stock
Wilwood 340-12411 Pedal Assembly Floor Mount Throttle Pedal & Link
Brake / Clutch and Throttle Pedal - Product Description

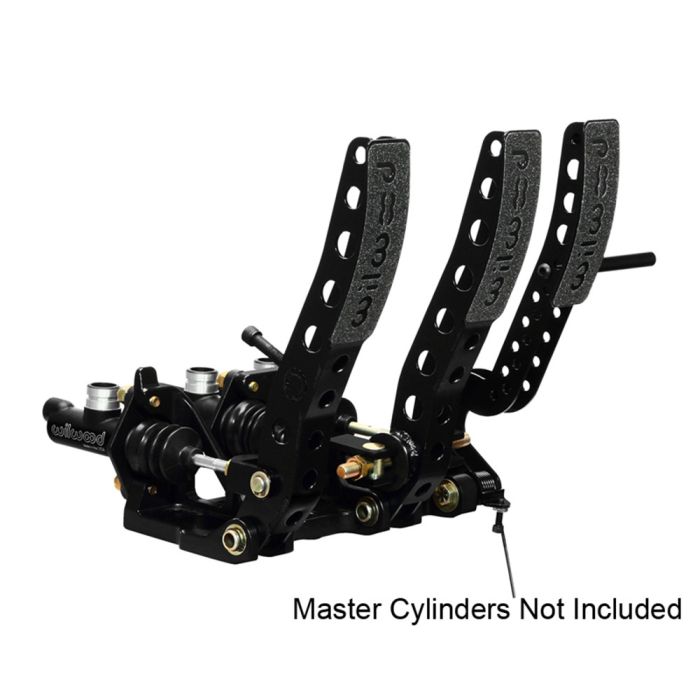

Wilwood’s new floor mount pedal assembly has a brake / clutch / throttle triple pedal design. There are three individual fabricated steel pedals with non-slip pedal pads to control brake, clutch and throttle. Pedal assembly part number 340-12411 is for front engine cars and includes a throttle bell crank and linkage assembly. This unit features an aluminum frame with strong lightweight fabricated steel pedal arms. The frame and the pedal arms have a black e-coat finish for protection and an attractive appearance. Also included with the pedal assembly are mounting studs, clevises, and balance bar assembly that is designed to provide smooth and accurate settings of the brake pedal bias. The balance bar can be set and locked down with the jam nut, or attached to a remote cable for quick on-track adjustments. The pedal assembly provides a 5.25 to 1 nominal ratio.

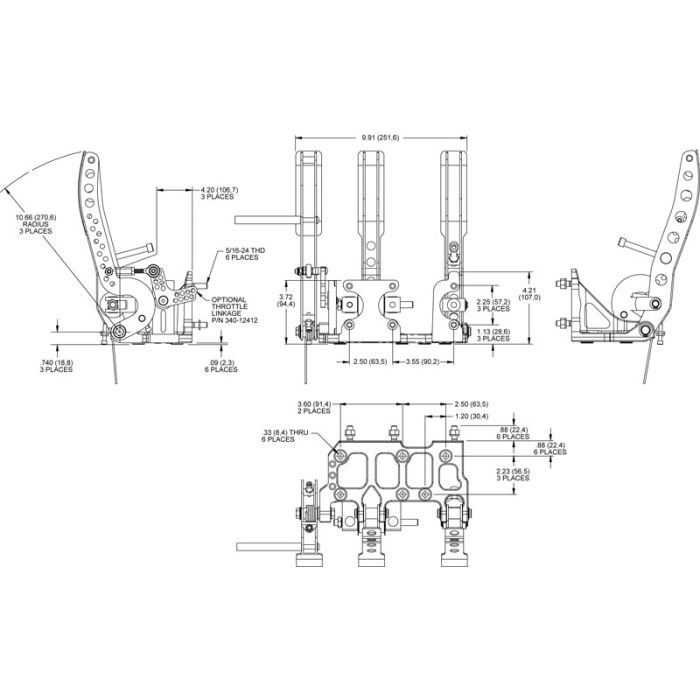

Additional Pedal Dimensions
Mount Length (in) 11.40
Pedal 1 Length (in) 10.66
Pedal 2 Length (in) 10.66
