EGR Valve Delete Kit for VW Audi Seat Skoda with 1.4 TDI engines BNM BMS BNV AMF ATL

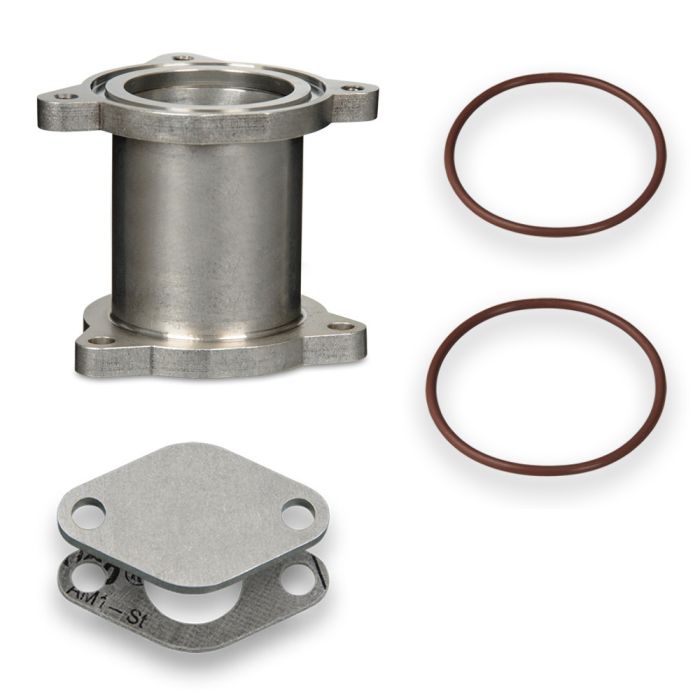

Kit Content and Specifications:

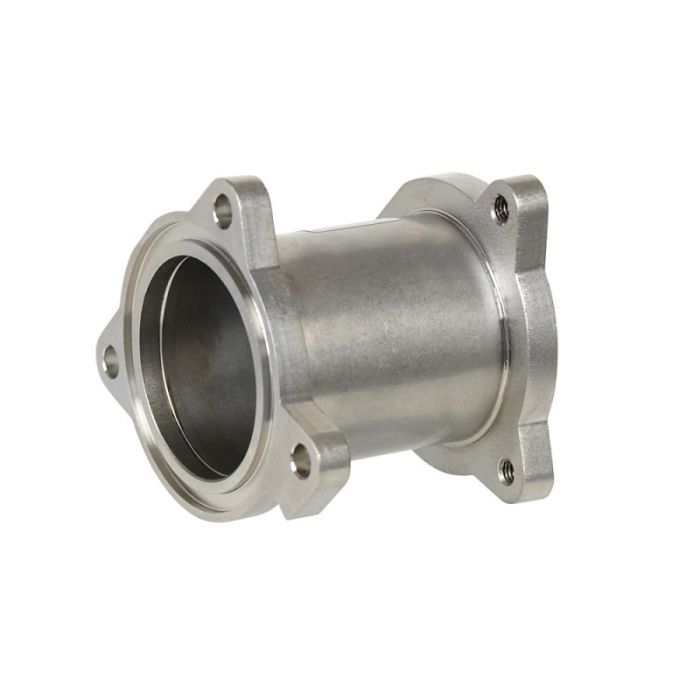

• • • 1 x EGR Replacement Pipe (51 mm outer diameter, 70 mm in Length, stainless steel - lifetime warranty)
    • 1 x Blanking Plate (stainless steel - lifetime warranty)
    • 1 x Blanking Plate Gasket
    • 2 x O-ring Seal

Please Note!

Generally until 2002-2004 no ECU warning light will appear. Later models with pneumatic and electronic EGR valves, fitment of this part may result in the ECU warning light appearing. We recommend a re-map of the ECU so that the EGR function can be removed completely, this can be carried out by tuner.

Application:

Audi:

• • • A2 (8Z0) 1.4 TDI, 2000.02-2005.08, 75HP / 55kW, engine code: AMF, BHC
    • A2 (8Z0) 1.4 TDI, 2003.11-2005.08, 90HP / 66kW, engine code: ATL

Seat:

• • • Cordoba (6L2) 1.4 TDI, 2005.05-2009.11, 70HP 51kW, engine code: BNM
    • Cordoba (6L2) 1.4 TDI, 2005.06-2009.11, 80HP 59kW, engine code: BMS, BNV
    • Ibiza III (6L1) 1.4 TDI, 2005.05-2009.00, 70HP 51kW, engine code: BNM
    • Ibiza III (6L1) 1.4 TDI, 2005.06-2009.00, 80HP, 59kW, engine code: BMS, BNV

Skoda:

• • • Fabia I (6Y2) 1.4 TDI, 2005.10-2008.03, 80HP / 59kW, engine code: BNV
    • Fabia I (6Y2) 1.4 TDI, 2005.10-2008.03, 70HP / 51kW, engine code: BNM
    • Fabia I Combi (6Y5) 1.4 TDI, 2005.10-2007.12, 80HP / 59kW, engine code: BNV
    • Fabia I Combi (6Y5) 1.4 TDI, 2005.10-2007.12, 70HP / 51kW, engine code: BNM
    • Fabia I sedan (6Y3) 1.4 TDI, 2005.10-2007.12, 80HP / 59kW, engine code: BNV
    • Fabia I sedan (6Y3) 1.4 TDI, 2005.10-2007.12, 70HP / 51kW, engine code: BNM
    • Fabia II (542) 1.4 TDI, 2007.02-2010.03, 70HP / 51kW, engine code: BNM
    • Fabia II (542) 1.4 TDI, 2007.01-2010.03, 80HP / 59kW, engine code: BNV, BMS
    • Fabia II Combi (545) 1.4 TDI, 2007.10-2010.03, 70HP / 51kW, engine code: BNM
    • Fabia II Combi (545) 1.4 TDI, 2007.10-2010.03, 80HP / 59kW, engine code: BNV, BMS
    • Roomster Praktik (5J) 1.4 TDI, 2007.03-2010.03, 70HP / 51kW, engine code: BNM
    • Roomster Praktik (5J) 1.4 TDI, 2007.03-2010.03, 80HP / 59kW, engine code: BNV, BMS
    • Roomster (5J) 1.4 TDI, 2006.07-2010.03, 70HP /51kW, engine code: BNM
    • Roomster (5J) 1.4 TDI, 2006.09-2010.03, 80HP /59kW, engine code: BNV, BMS

Volkswagen:

• • • Fox (5Z1, 5Z3) 1.4 TDI, 2005.04-2009.12, 70HP / 51kW, engine code: BNM
    • Polo (9N_) 1.4 TDI, 2005.04-2009.11, 70HP / 51kW, engine code: BNM, BWB
    • Polo (9N_) 1.4 TDI, 2005.04-2009.11, 80HP / 59kW, engine code: BNV, BMS

If in doubt please check your engine code. Alternatively if your engine or vehicle model is not listed please contact us before placing an order.

OEM EGR valve number:

• • • 045 131 501F
    • 045 131 501K
    • 045 129 637 A

For use outside public roads and in motor sport
