Ecumaster ADU 5'' Rev.2

We present the new ECUMASTER Racing Dash family of products.

Our Specific goal was to create a fully customizable, feature-rich, quality solution for professional drivers. Based on their requirements and suggestions, we have designed and manufactured the perfect device to please every race drvier and their engineering team.

We know how important it is to have a readable and easily configurable dash logger. One which clearly displays all the necessary data readings and even more importantly, comprehensively relays all important alarms to the driver in a compelling manner.

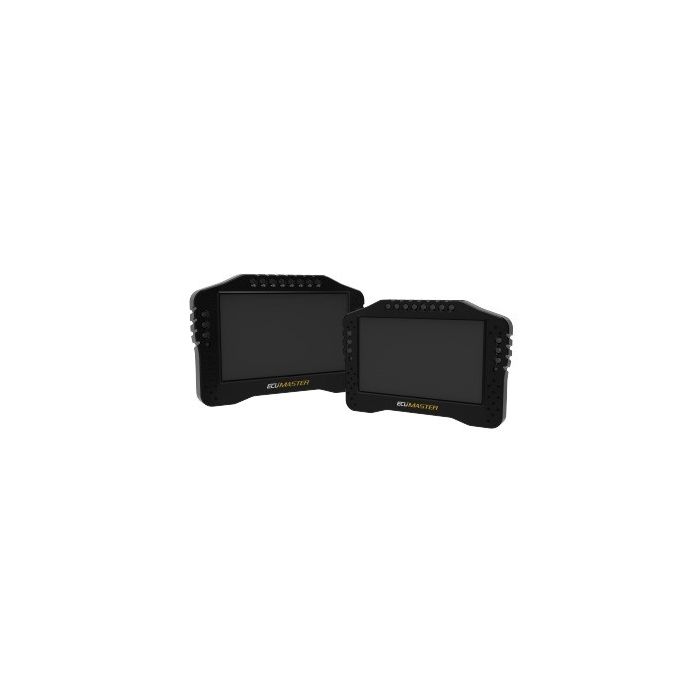

Our Advanced Display Units are available in 5'' and 7'' versions. Featuring high resolution, high visibility anti-glare screens, these guarantee perfect visibility even in adverse weather conditions.

The ADU comes with multiple pre-configured pages, which can be customized by the end user to display data required at every race stage (e.g practice, qualification, race, troubleshooting, etc.) and changed manually or automatically (based on an advanced conditions system). Each channel displayed on a page (gauges, icons, texts,, etc.) can be easily modified using user-friendly, Windows based software. Our comprehensive overlay system facilitates a multiple page display for important data (e.g low oil pressure, best lap, etc.) independently of the actual page displayed.

The ADU are also equipped with 15 ultra-bright RGB LED diodes which can be used as an advanced gear-dependent shift light and can be modified by user defined logic (e.g. Alarms, low fuel level, etc.).

Using IR beacons or a GPS system the dash turns into a powerful lap timer with a predictive timing function. Advanced predictive lap timing, based on auto-update best reference lap is a feature of the qualification mode which can be activated by selecting the qualification page.

Life time fuel consumption calculations are also part of the package. As a result of this functionality, it is possible to calculate the fuel remaining in the fuel tank with great accuracy (assuming the ECU is able to send momentary fuel consumption data). This is a MUST have feature for any endurance racer.

User configurable timers can be adjusted for additional functionality e.g. Pit stop timer etc.

The ADU also supports thermal cameras to monitor brake discs as well as tyre temperatures (up to 16 points per tyre).

Cross communication with other devices in the car is provided via two built-in, independent CAN BUS communication ports. Fully user-configurable, CAN streams together with pre-configured communications templates, allowing you to connect our hardware to virtually every engine management system.

To ensure all of the features work together seamlessly, our device is based on 32-bit automotive controller, paired with a state of the art graphics processor. Such a combination provides the perfect workign environment for any engineer or driver and guarantees anti-aliased, high quality graphics at 50 frames per second.

For further data analysis, data channels can be logged to a USB Flash drive with a frequency of up to 500Hz.

All these "Must Have" features.... and more, are housed in a rugged, specially CNC machined, black anodized enclosure.
