Innovate TC-4 unit for EGT – 4 channels

Innovate TC-4 unitfor EGT – 4 channels

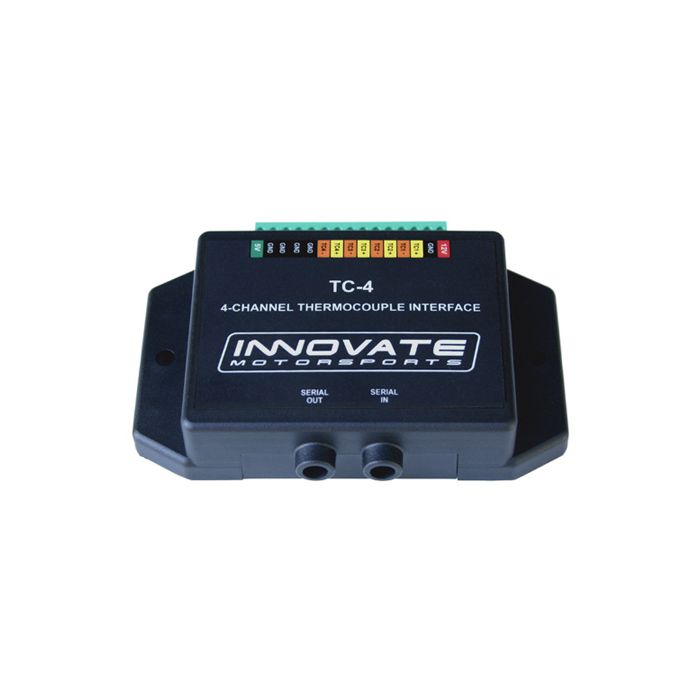

The TC-4 device is 4 channel thermocouple interface device for the MTS (Modular Tuning System). The TC-4 may be used as a stand-alone 4 channel thermocouple amplifier for logging directly into LogWorks or it can be used in conjunction with any other MTS compliant device to retrieve key temperature metrics .

Each of the four inputs of the TC-4 can be configured by the user for either EGT range (32-1999 deg F, 0-1093 deg C) or for CHT range to measure cylinder head temperatures (32-572 deg F, 0-300 deg C). The TC-4 can also be used to measure other temperature metrics such as turbo inlet and outlet temp, catalytic converter temp, transmission temp, and more.

The TC-4 is also a key component of Innovate Motorsports' Modular Tuning System (MTS). Using the TC-4's serial ports you can daisy-chain other Innovate devices such as the XD-16, AuxBox (LMA-3), LC-1, DL-32, and SSI-4.

The TC-4 includes the TC-4, Program Cable, Patch Cable (to daisy chain with other MTS compatible devices), and Mounting hardware.
