Wilwood 120-8841 HM2 Hydra-Mechanical Floating Mount Caliper Right 1 Piston
Manufacturer
Wilwood
Wilwood
SKU
WIL-120-8841
Retail price:
€127.99
Your price:
€108.79
The lowest price of the last 30 days before the discount:
€127.99
On demand

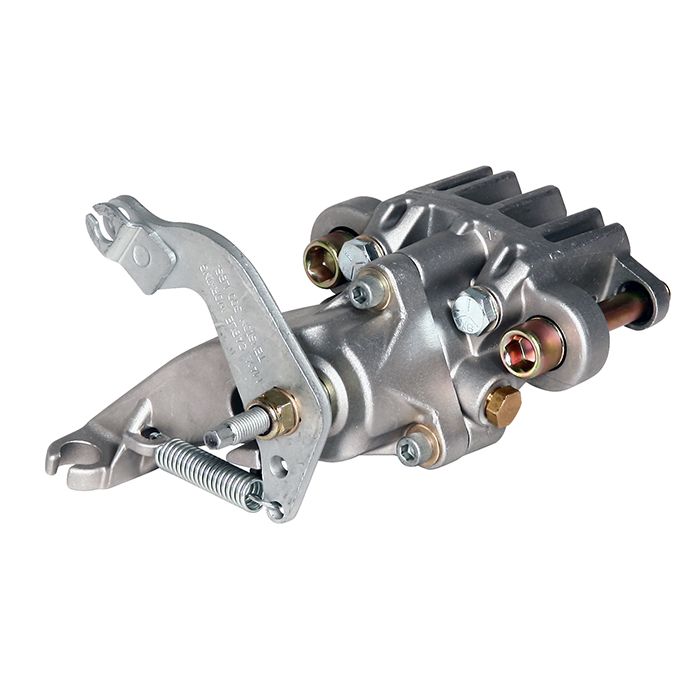

Wilwood 120-8841 HM2 Hydra-Mechanical Floating Mount Caliper Right 1 Piston
HM2 Hydra-Mechanical
Wilwood's HM series Hydra-Mechanical calipers are the perfect rear caliper for utilty vehicles. HM calipers offer options of both left-hand and right-hand units, with piston sizing of either 1.00" or 1.19. HM calipers utilizes a cost effective die cast construction with advanced design and manufacturing techniques which results in a rigid, lightweight and durable caliper.
Pistons
| Piston Count | 1 |
| Piston Area (in²) | 1.06 |
| Piston Type | Stainless |
| Dust Boot | Yes |
Rotor Dimensions
| Rotor Width (in) | 0.19 |
| Rotor Diameter(in) | 11.20 |
Pad Dimensions
| Pad Area (in²) | 1.7 |
| Pad Volume (in³) | 0.26 |
Duty Rating & Material
| Material | Cast Aluminium |
| Weight(Lbs) | 2.7 |
Colors & Finish
| Color | Clear |
| Finish | Clear Anodize |
Mounting
| Mount Center(in) | 3.00 |
| Mount Position | |
| Mount Side | Right Hand |
| Mount Type | Floating |
Specifications
Rotor Compatibility
| Rotor Width (in) | 0.19 |
| Maximum Rotor Width (in) | 0.25 |
| Minimum Rotor Width (in) | 0.15 |
| Maximum Rotor Diameter(in) | 11.20 |
| Minimum Rotor Diameter(in) | 6.00 |
Brake Pad Specifications
| Brake Pad Type 1 | 6407 |
| Brake Pad Type 2 | N-A |
| Brake Pad Type 3 | N-A |
| Total Pad Area (in²) | 1.7 |
| Total Pad Volume (in³) | 0.26 |
| Mount |
Piston Specifications
| Piston 1 Bore (in) | 1.19 |
| Piston 2 Bore (in) | |
| Piston 3 Bore (in) | |
| Total Piston Area (in²) | 1.06 |

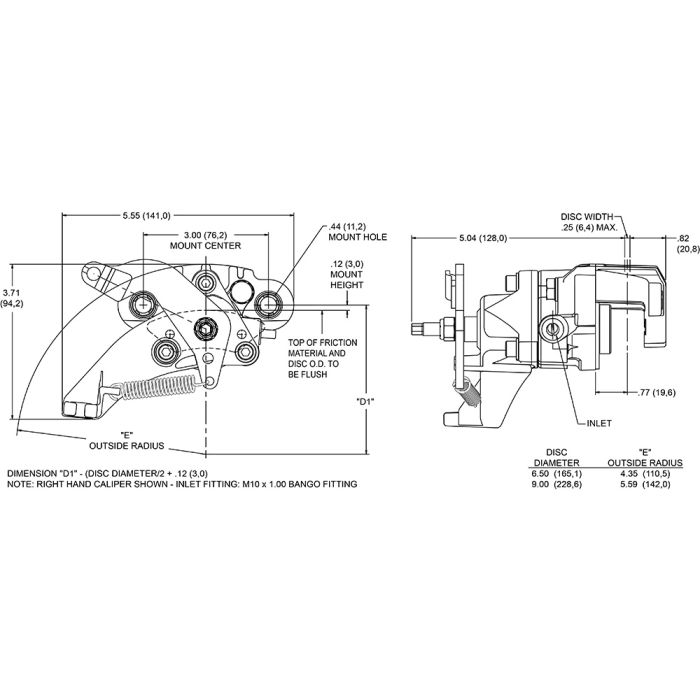

Mounting Specifications
| Mount Type | Floating |
| Mount Side | Right Hand |
| Mount Center(in) | 3.00 |
| Mount Hole Size(in) | 0.67 |
| Mount Height(in) | |
| Inlet Thread Size | M10 x 1.00 |
More Information
| Manufacturer |
Wilwood
|
|---|---|
| Series | HM Hydra-Mechanical |
