20-0376-0X FUEL HANGER PLUMBING KIT, EVO 7-8-9
The plumbing kits include everything required to connect directly to an aftermarket (-8AN male) fuel rail and (-6AN male) FPR for both single and dual pump configurations. This includes a pre-made PTFE -8AN feed line from the hanger up to the engine bay and the kit re-uses the factory feed line as the regulator return line.

PTFE -8AN hoses attach to a Radium Engineering fuel filter that mounts underneath the vehicle using a specifically designed EVO 7-8-9 bolt-on bracket.

Depending on the kit selected (-01,-03,-05), the fuel filter will be assembled with 1 of 3 different elements. Go HERE for more filter element information.

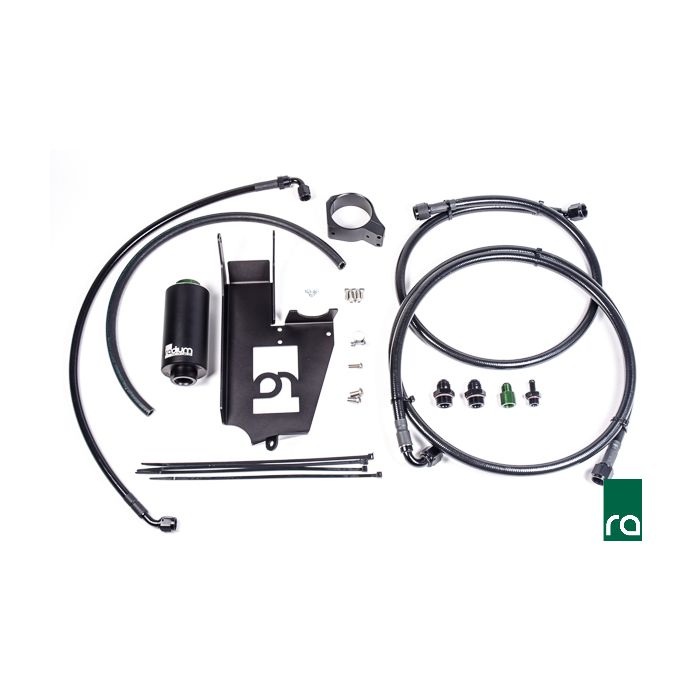

INCLUDES
-Fuel Filter (-03 Stainless or -05 Microglass)
-Black 8AN Male Adapter Fittings (x2)
-Billet Aluminum 60mm Filter 2-Piece Clamp
-Aluminum EVO 7-8-9 Filter Bracket
-8AN PTFE Fuel Feed Hose Replacement (x2)
-6AN PTFE Fuel Return Replacement
-Vapor Shield Hose, 6AN ORB Fitting, and EFI Clamp
-Inverted Flare to 6AN Adapter Fitting
-Stainless Steel Hardware

Instruction PDF
