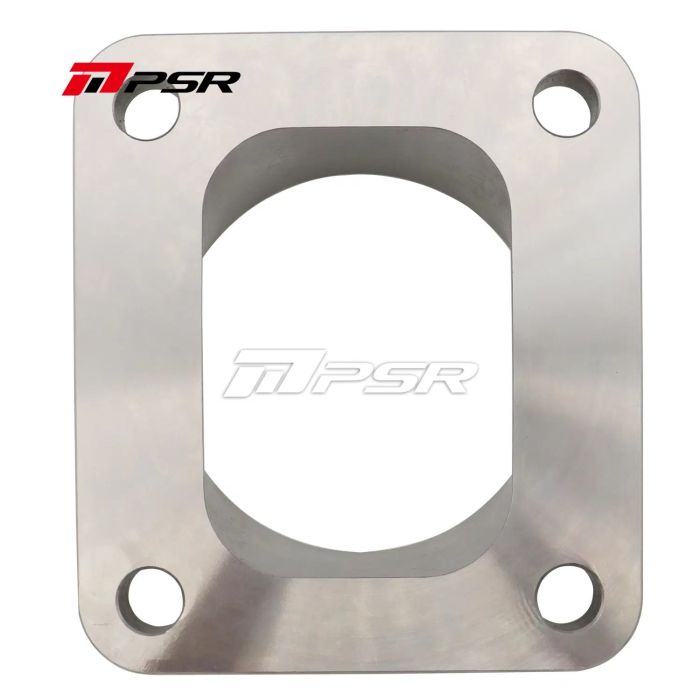

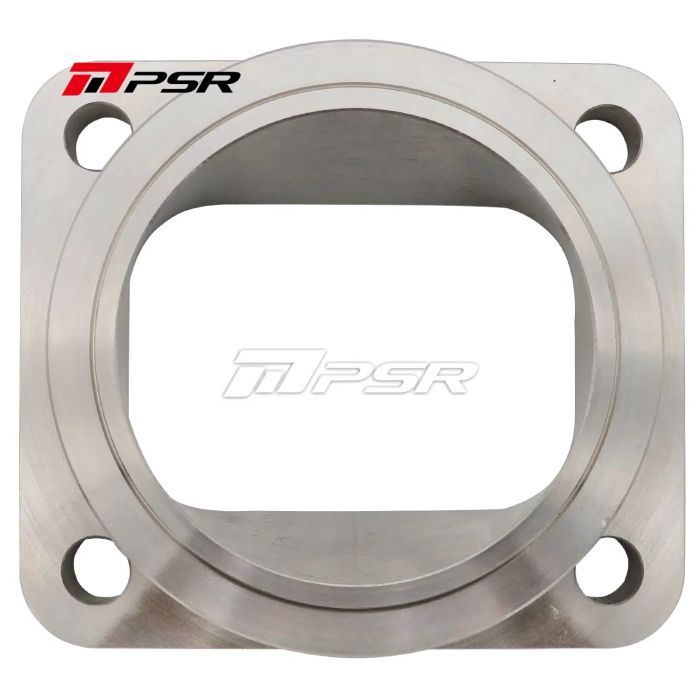

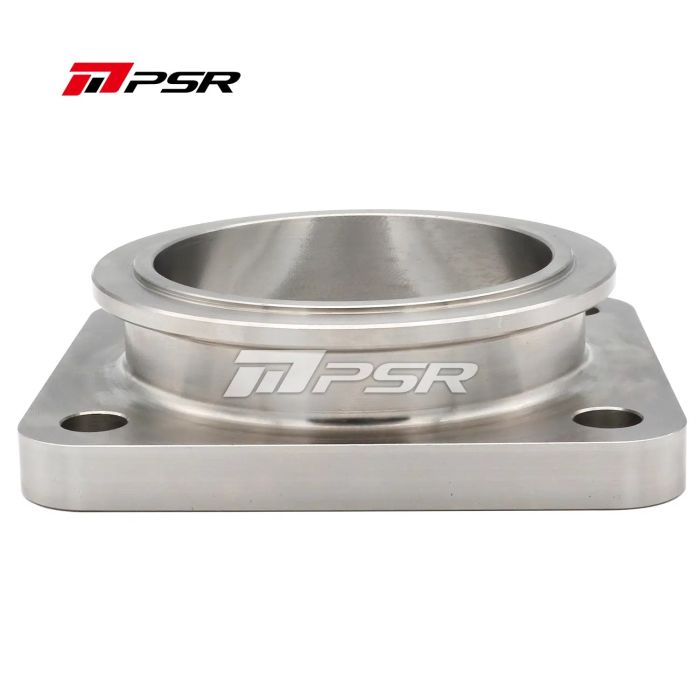

Pulsar PSR V-Band to T4 Compact Adapter for PTX30/PTX35/PTG55/PTG62

• CNC machined from billet 304s stainless steel
• Super compact design with a total height of roughly 1 inch
• Perfectly match the inlet of the turbine housing(fire ring) and Std T4 flange both inside and outside.

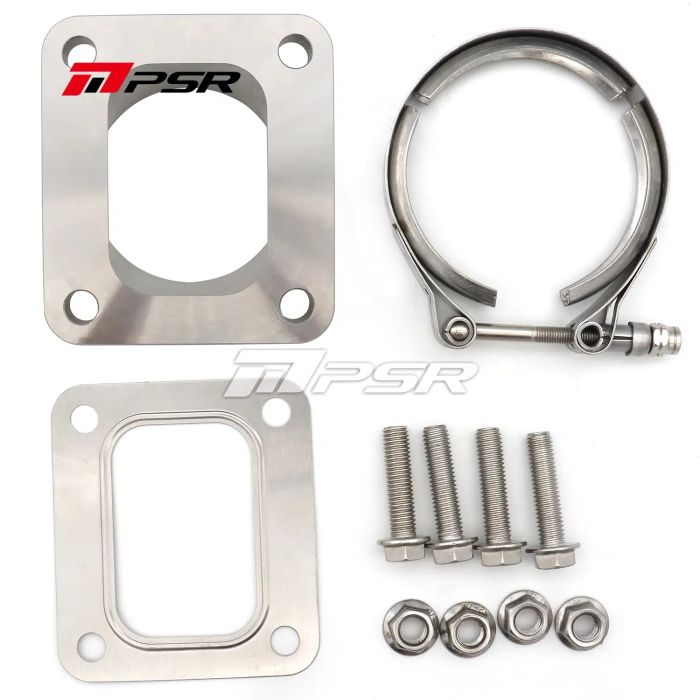

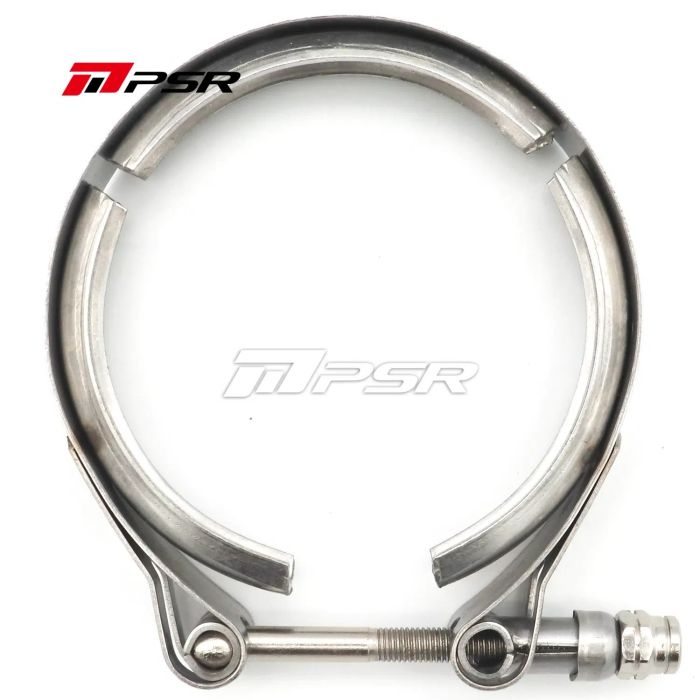

• Install kit (bolts, gasket, and clamp) included

Application:

Pulsar series Vband Inlet turbine housings

• PTG70 PTG75 PTG82 etc. series：6270G, 7170G, 6275G, 6775G, 7375G, 7975G, 6782G, 7782G;
• V-Band flange OD of the inlet v-band flange is 3.5″
• Self locking nut
