Wilwood 120-7183 SC2 Universal Floating Mount Caliper 1 Piston

Manufacturer WilwoodWilwood
SKU WIL-120-7183

  On demand



Wilwood 120-7183 SC2 Universal Floating Mount Caliper 1 Piston

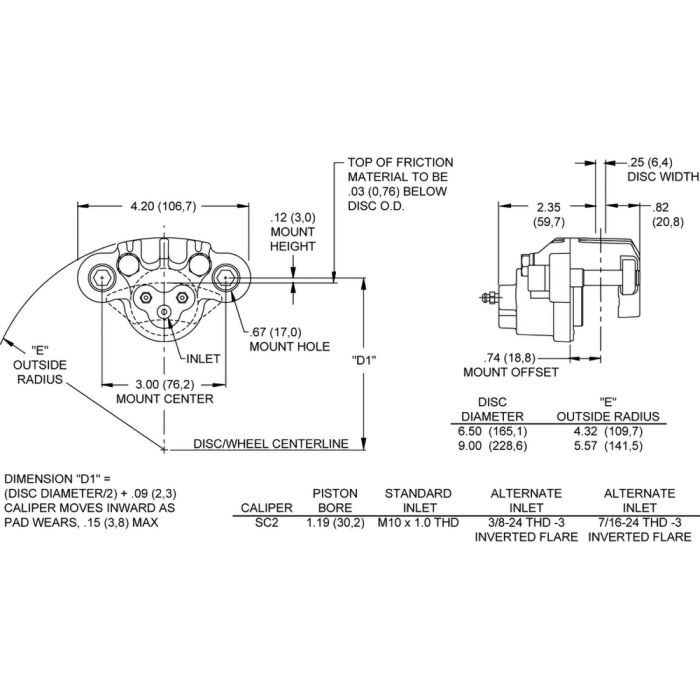

SC2 Single Piston

Designed, engineered and manufactured in the U.S.A., this floating die cast aluminum caliper is a strong, compact, inexpensive answer to the braking needs of recreational, agricultural and industrial vehicles. Features of this single piston design include availability of either 1.06”, 1.19” or 1.25” bore size, fitted dust seal to prevent ingress of environmental contamination, dual bleed fittings for versatility in mounting position and fluid inlets in M10 x 1.0 banjo.

The mounting system features corrosion resistant slide pins floating in viscoelastic rings mounted in the ears of the body for smooth, rattle-free operation. This system controls pad knock-back to retain a consistent pedal or hand lever feel throughout the life of the pads. Weight: from 1.1 pounds. Rotor thickness range: .15” to .25”

Pistons
Piston Count 1
Piston Area (in²) 1.06
Piston Type Aluminum
Dust Boot Yes
Rotor Dimensions
Rotor Width (in) 0.25
Rotor Diameter(in) 9.00
Pad Dimensions
Pad Area (in²) 1.7
Pad Volume (in³) 0.26
Duty Rating & Material
Material Cast Aluminium
Weight(Lbs) 1.3
Colors & Finish
Color Clear
Finish Clear Anodize

Mounting
Mount Center(in) 3.00
Mount Position
Mount Side Universal
Mount Type Floating



Rotor Compatibility
Rotor Width (in) 0.25
Maximum Rotor Width (in) 0.25
Minimum Rotor Width (in) 0.15
Maximum Rotor Diameter(in) 9.00
Minimum Rotor Diameter(in) 6.50


Piston Specifications
Piston 1 Bore (in) 1.19
Piston 2 Bore (in)
Piston 3 Bore (in)
Total Piston Area (in²) 1.06
