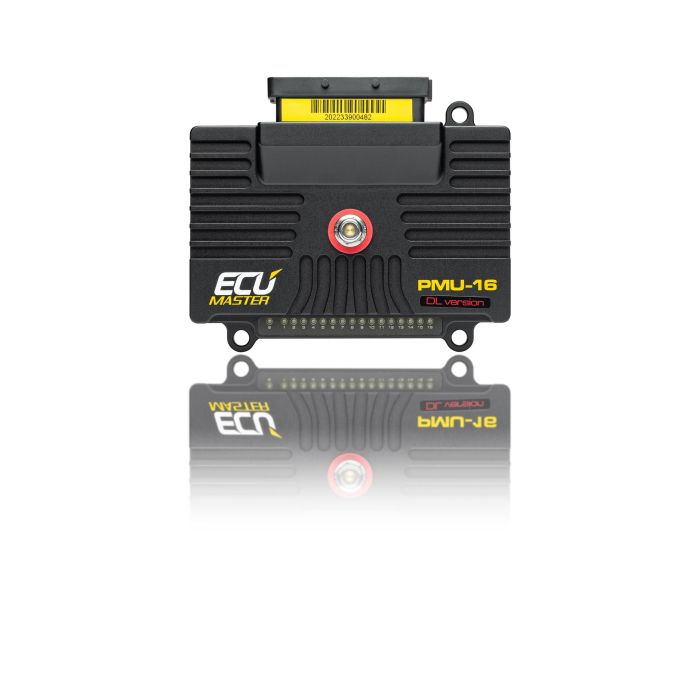

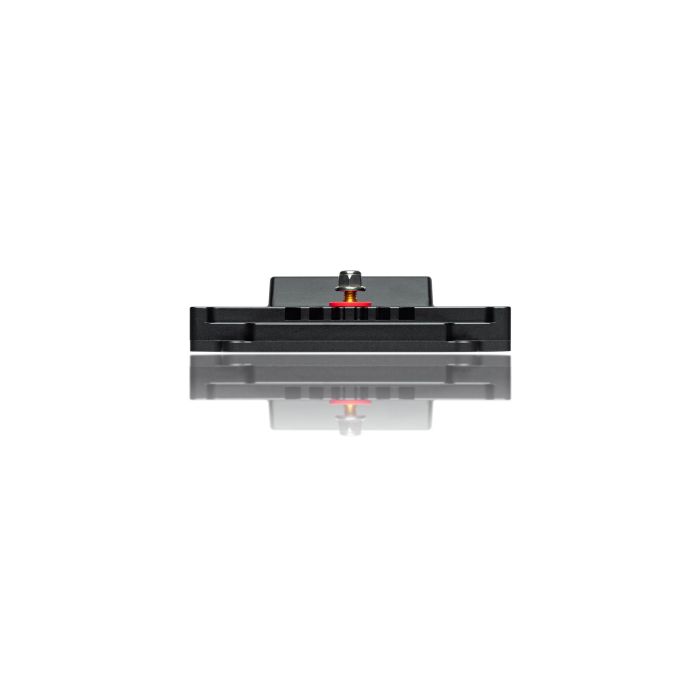

Ecumaster PMU16 DL

Ecumaster PMU16-DL in comparison to Ecumaster PMU16 has a built-in highly efficient and also resistant temperature memory for logging data. The Power Management Unit Ecumaster PMU (Power Management Unit) is a device that completely eliminates the fuse box and relays in the car installation. The module is fully programmable and has a number of strategies such as sequential switching on and off of devices, device restart in case of failure or overvoltage, subsequent shutting down in case of voltage drop in a specific order and LEDs indicating the status of individual outputs. PMU significantly simplifies the car's beam, lowers the weight of the entire installation and protects the car against expensive failures. OUTPUT: 10 x 25A 6 x 15A Dedicated exit for wipers with parking function INPUT: 16 x switched COMMUNICATION: 2 x CAN - including diagnostics, power consumption, input voltage, errors. OTHERS: Built-in accelerometers with power off function during an accident. LEDs indicating the status of outputs. 256MB of memory (login speed up to 500hz) (only version with built-in datalogger) PLUG: 1 x 39 pin 1 x M6 stud DIMENSIONS: 131 x 112 x 32 mm WEIGHT 345g
