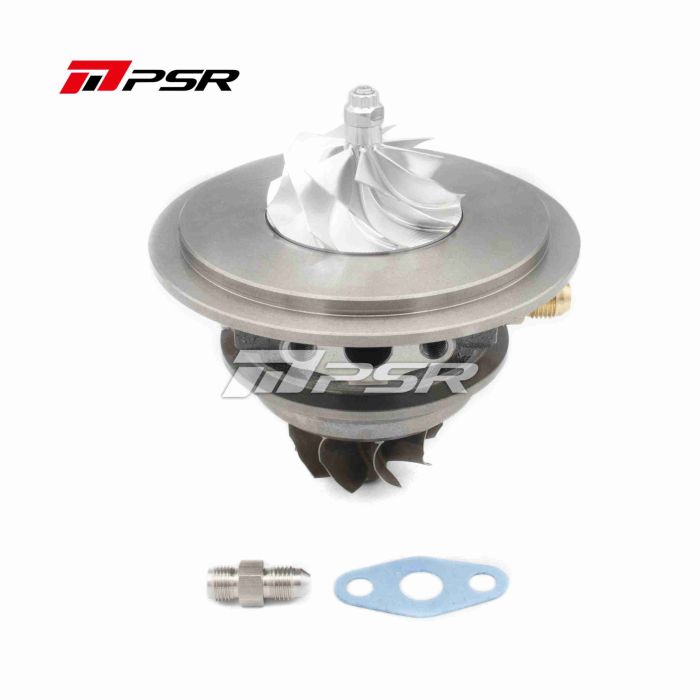

Supercore Pulsar PSR 5455G 660HP Forward Rotation

• Dual ceramic ball bearing system provides optimal turbo response &
  better durability by reducing the shaft-motion
• 9 Blade G-Aero billet compressor wheel with extended tapered tip technology
• 9 Blade G-Aero Inconel 713c turbine wheel
• Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
• Internally Wastegated, Billet Actuator(Working pressure 12 psi)

Compressor Housing: W/O Compressor Housing

Turbine Housing: W/O Turbine Housing

• Compressor Wheel: 54*67mm
• Turbine Wheel: 60*55mm
• Compressor Inlet: 3″ Hose or 4″ Horse
• Compressor Outlet: 2″ Hose
• Turbine Inlet: T25, T3, T4 or Vband
• Turbine Outlet: 3″ V-Band
• Water Ports: 2-M14 X 1.5
• Oil Inlet: 7/16-24 UNF with a -4AN Restrictor pre-installed
• Oil Outlet: Std T3 Oil Drain Flange
