Version with bracket for screwing on the engine cover

Application:

3' E46, 08.2002 - 08.2006

318d, Sedan, M47N engine

318d, Touring, M47N engine

318d, Compact, M47N engine

X3 E83, 05.2003 - 07.2006

2.0d, M47N2 engine

X3 E83 LCI, 03.2006 - 08.2010

2.0d, M47N2 engine

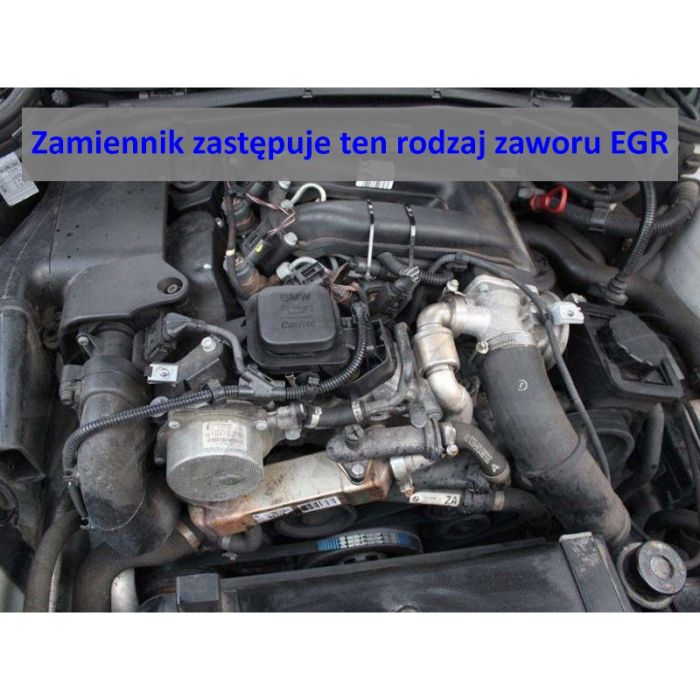

Note: There may have been other varieties of EGR valves in the above cars. Please check the EGR valve carefully before purchasing parts.

EGR valve part numbers:

Pierburg: 7.28264.06.0

BMW: 11717785452, 11717804378, 11714701242

Exhaust gas cooler part numbers:

11717794245

11717790065

Technical information:

replacement material: acid-resistant steel;

special clamp for acid-resistant steel flanges;

collector cap material: acid-resistant steel;

collector gasket material: Victor Reinz Extreme Plus, resistant to all conditions in the exhaust system;

EGR valve gasket material: Viton, resistant to oil and high and low temperatures;

pipe diameter: 54.0 mm;

total length: 90 mm.

After replacing the defective EGR valve with a replacement, it is necessary to change the software on newer car models so that the engine controller does not report the error.

For off-highway and motorsport use.
